Viessmann Vitocrossal Gas-Fired Floor-Standing Boiler
- 200 CI2
- 300 CU3A

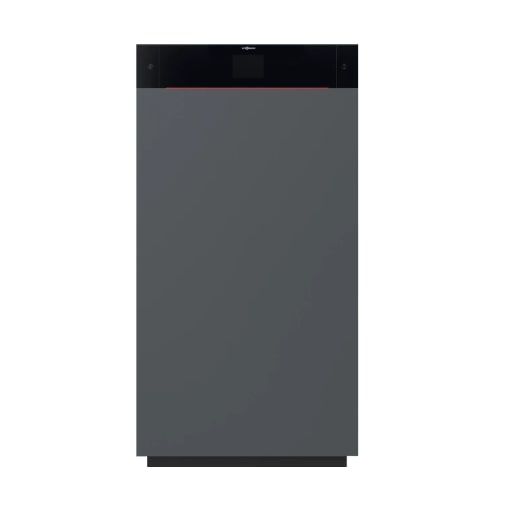

200 CI2
Vitocrossal 200 CI2 is a floor standing gas condensing boiler with modulating MatriX cylinder burner and stainless steel Inox-Crossal heat exchanger. Rated Input: 399 – 2000 MBH.
- Outstanding efficiency
- Compact & small footprint
- 7″ color touchscreen
- WiFi built-in
Product Details
Fuel type
Natural gas (NG) or liquid propane gas (LPG)
Rated input
50 – 399 MBH (14.7 – 117 kW) for CI2-399
50 – 500 MBH (14.7 – 147 kW) for CI2-500
75 – 750 MBH (22.0 – 220 kW) for CI2-750
100 – 1000 MBH (29.3 – 293 kW) for CI2-1000
50 – 1500 MBH (14.7 – 440 kW) for CI2-1500
100 – 2000 MBH (29.3 – 586 kW) for CI2-2000
Combustion efficiency
97% for CI2-399 and CI2-500
96.9% for CI2-750
96.8% for CI2-1000
96.6% for CI2-1500
96.5% for CI2-2000
Total weight
789 lbs (358 kg) for CI2-399 and CI2-500
963 lbs (437 kg) for CI2-750 and CI2-1000
1812 lbs (822 kg) for CI2-1500
1969 lbs (893 kg) for CI2-2000
Length
39 inches (992 mm) for CI2-399 and CI2-500
47¼ inches (1200 mm) for CI2-750 and CI2-1000
56¼ inches (1428 mm) for CI2-1500 and CI2-2000
Width
29½ inches (750 mm) for all models
Height
64½ inches (1640 mm) for CI2-399 to CI2-1000
78¾ inches (1998 mm) for CI2-1500 to CI2-2000

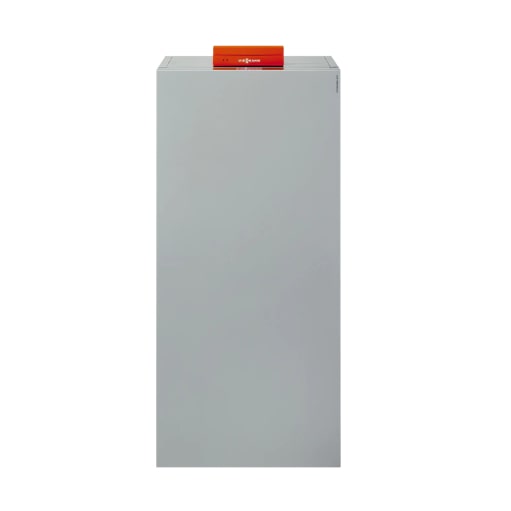

300 CU3A
Vitocrossal 300 CU3A is a gas-fired floor-standing boiler with stainless steel Inox-Crossal heat exchanger and MatriX dome gas burner. Rated input: 19 to 199 MBH.
- Wide water passageways for full flow
- Self-calibrating combustion system
- Multi-boiler installation up to 1592 MBH
- No dedicated boiler pump required
Product Details
Fuel type
Natural gas (NG) or liquid propane gas (LPG)
Min. input
19,000 BTU (5.6 kW) for CU3A-94
25,000 BTU (7.3 kW) for CU3A-125
43,000 BTU (12.6 kW) for CU3A-160 & CU3A-199
Max. input
94,000 BTU (27.5 kW) for CU3A-94
125,000 BTU (36.6 kW) for CU3A-125
160,000 BTU (47 kW) for CU3A-160
199,000 BTU (58 kW) for CU3A-199
Efficiency (AFUE)
95% for all models
Weight
269 lbs (122 kg) for CU3A-94
275 lbs (125 kg) for CU3A-125
352 lbs (160 kg) for CU3A-160 & CU3A-199
Depth
27 inches (684 mm) for CU3A-94 & CU3A-125
31½ inches (801 mm) for CU3A-160 & CU3A-199
Width
26 inches (660 mm) for all models
Height
61½ inches (1562 mm) for all models, with control interface closed
67 inches (1707 mm) for all models, with control interface open
