Mitsubishi City Multi

N-Generation VRF Series

The CITY MULTI® N-Generation™ VRF Series

City Multi indoor units are compact and quiet. These units offer the ultimate heating and cooling comfort solution provide optimal comfort in every zone. Whether a condo, office, hotel or school, City Multi offers flexibility and quality indoor units to meet and exceed the needs of your space.

  • 4-Way Cassette Units (PLFY)
  • 1-way Cassette Units (PMFY)
  • Ceiling Suspended Units (PCFY)
  • Wall Mounted Units (PKFY)
  • Floor Standing Exposed/Concealed Units (PFFY)
  • Air to Water HEX Units (PWFY- AU)
  • Air to Water Booster Units (PWFY-BU)
  • Ceiling Concealed Units (PEFY) – Low and High Static Pressure
  • Vertical Concealed Air Handling Units (PVFY)

Water Source

It is possible now to combine the features of VRF with a water circuit using City Multi Water source VRF system. In this format the heat is rejected to a water loop. Benefits of water source VRF systems are greater diversity, flexibility, supreme thermal comfort and increased COP level.

The Water source VRF is capable of operating in a wide range of entering water temperatures. Low limit standard entering water temperature is 50⁰F and that can be lowered further to 23⁰F with the addition of glycol in the water loop of entering water to VRF condenser.

City Multi water source VRF system can be integrated into geothermal system (Heating and cooling loop). During summer, City Multi Ground source heat pump removes heat from the building and disperses in the ground. In winter, thermal energy is extracted from the ground and used to heat the building.

Water source VRF system is comprised of single or multiple heads connected to VRF water source condenser(s) via refrigeration piping. On the hydronic side Water source VRF condenser(s) is connected to heat adder and heat rejecter or geothermal system via hydronic water piping.

City Multi Water source VRF system is applied in almost all types of thermal comfort applications including but not limited to, high, medium & low rise condominiums, commercial offices and buildings, schools, colleges, universities, religious buildings, hospitals, gymnasiums, community centers, hotels, hostels, strip malls, shopping malls in new, replacement, retrofit and upgrade scenarios.

Indoor

City Multi indoor units are compact and quiet. These units offer the ultimate heating and cooling comfort solution provide optimal comfort in every zone. Whether a condo, office, hotel or school, City Multi offers flexibility and quality indoor units to meet and exceed the needs of your space.

  • 4-Way Cassette Units (PLFY)
  • 1-way Cassette Units (PMFY)
  • Ceiling Suspended Units (PCFY)
  • Wall Mounted Units (PKFY)
  • Floor Standing Exposed/Concealed Units (PFFY)
  • Air to Water HEX Units (PWFY- AU)
  • Air to Water Booster Units (PWFY-BU)
  • Ceiling Concealed Units (PEFY) – Low and High Static Pressure
  • Vertical Concealed Air Handling Units (PVFY)

Control

The need for control is paramount in order to optimize the performance of any air conditioning system and minimize its running costs. Mitsubishi Electric offers a wide range of control options designed to meet such needs.

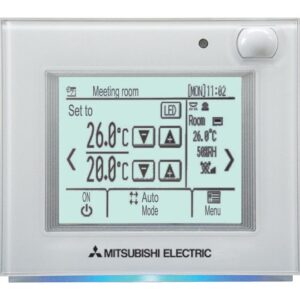

  • Local Remote Controllers

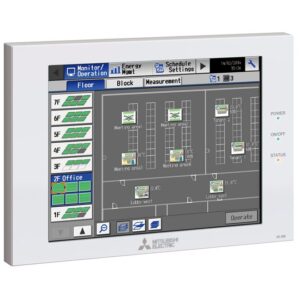

  • Centralized Controls
  • Browser Based Controls
  • Centralized Control Interface
  • BMS Integration

575V

THE FIRST IN CANADA SINCE 2013

In the past, larger commercial/industrial operations have been restricted in their adoption of Variable Refrigerant Flow (VRF) heating and cooling systems primarily due to voltage compatibility issues. Not anymore.

Mitsubishi Electric has developed the first 575V VRF system to meet the very specific needs of major commercial and industrial operations in Canada. This game-changing technology means:

  • A significant downsizing of your building’s electrical infrastructure requirements (i.e. – ampacities of system conductors, protective devices and isolation devices).
  • The elimination of step down transformers.
  • Reduced installation time.
  • Up to 30% savings on installation cost.

If you are developing or retrofitting a large commercial/industrial operation with high voltage capacities, you need to look into our City Multi 575V option. It’s your best choice for energy efficient and cost/time-effective heating/cooling.
