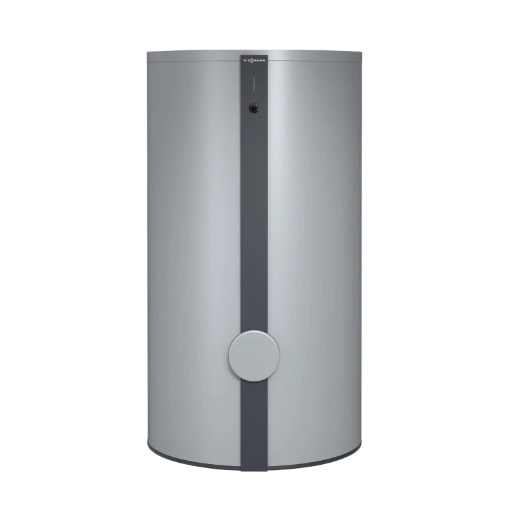

Viessmann Vitocell Hot Water Tanks

300-V

Stainless steel domestic hot water tanks for a lifetime of hygienic domestic hot water heating. The 119 USG model is silver, all other models are white. Capacity: 42 to 119 USG – 160 to 450 L

  • 42 to 119 USG capacity
  • Single-coil vertical tank
  • Combine tanks for high-volume DHW
  • Universally suitable

Product Details

Storage capacity

42 USG (160 L) for EVIB-42
53 USG (200 L) for EVIB-53
79 USG (300 L) for EVIB-79
119 USG (450 L) for EVIB-119

Continuous draw rating

189 GPH (715 L/h) for EVIB-42
190 GPH (719 L/h) for EVIB-53
269 GPH (1018 L/h) for EVIB-79
301 GPH (1139 L/h) for EVIB-119

Weight (dry)

126 lbs (57 kg) for EVIB-42
143 lbs (65 kg) for EVIB-53
231 lbs (105 kg) for EVIB-79
226 lbs (103 kg) for EVIB-119

Tank color

White for EVIB-42, EVIB-53 & EVIB-79
Silver for EVIB-119

Length

25 inches (634 mm) for EVIB-42 & EVIB-53
26¼ inches (668 mm) for EVIB-79
32¾ inches (831 mm) for EVIB-119

Width

26 inches (661 mm) for EVIB-42 & EVIB-53
28 inches (706 mm) for EVIB-79
35½ inches (904 mm) for EVIB-119

Height

47 inches (1190 mm) for EVIB-42
55½ inches (1410 mm) for EVIB-53
68½ inches (1740 mm) for EVIB-79
77 inches (1960 mm) for EVIB-119

300-B

Stainless steel dual-coil DHW tank for a lifetime of domestic hot water heating. Two heat exchanger coils for solar heating applications in conjunction with solar collectors and a heating boiler. The 79 USG model is white and the 119 USG model is silver. Capacity: 79 and 119 USG – 300 and 450 L

  • 79 to 119 USG capacity
  • Dual-coil vertical tank
  • Ideal for residential homes
  • Ideal for solar heating

Product Details

Storage capacity

79 USG (300 L) for EVBB-79
119 USG (450 L) for EVBB-119

Continuous draw rating

429 GPH (1624 L/h) for EVBB-79 with coils in parallel
393 GPH (1488 L/h) for EVBB-79 with coils in series

516 GPH (1953 L/h) for EVBB-119 with coils in parallel
461 GPH (1745 L/h) for EVBB-119 with coils in series

Weight (dry)

249 lbs (113 kg) for EVBB-79
259 lbs (118 kg) for EVBB-119

Tank color

White for EVBB-79
Silver for EVBB-119

Length

26¼ inches (668 mm) for EVBB-79
32¾ inches (831 mm) for EVBB-119

Width

28 inches (706 mm) for EVBB-79
35½ inches (904 mm) for EVBB-119

Height

68½ inches (1740 mm) for EVBB-79
77 inches (1960 mm) for EVBB-119
