Toyotomi Heat Convector With Wall Bracket
Maximize the Benefits of Hydronic Heating and Usable Floor Space
- Complements the highest efficiency, aquastatic controlled boilers that use low water temperatures.
- Internal thermostat control circuitry allows unit to communicate to zone valve or boiler controller – an exclusive feature that no other convector has!
- Easy to use LED display panel with built in thermostat that includes boiler when zone should come on or off based on homeowner’s desired comfort requirement.
- Variable fan speed maximizes operating efficiency and fuel savings.
- Benefit of both radiant heat and convective heat.
- Whisper quiet fan efficiently distributes heat evenly throughout the home.
- Heats an area of 300 to 1,000 square feet (heat output of 3,000 BTU per hour on low setting to 20,200 BTU per hour on high).
- Saves valuable wall space, replacing up to 37 feet of baseboard. *
- Can be installed in less than half the time of baseboard.

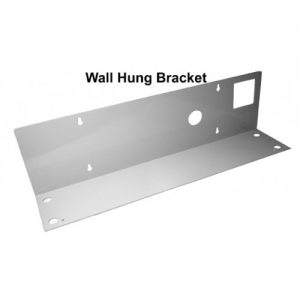

- INCLUDES BRACKET FOR WALL HANGING

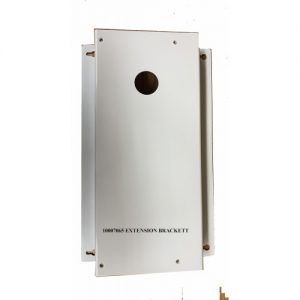

- AVAILABLE ACCESSORY HC-20B: EXTENSION BRACKET (PART #10007065) allows Wall Hung Bracket to be extended out from the wall making pipe connections much easier.
*Baseboard length calculated based on 550 BTU/ft.
|Model: HC-190B HEAT CONVECTOR|
|Type||Hot water heating, floor standing, or wall hanging (with available accessory)|
|Heating Range||3,000 – 20,200 BTU/H|
|Heating Exchanger||0.16 gal. (0.6L)|
|Flow Rate||1.0 gal/min. (3.785L/min)|
|Hot Water Temperature Range||110°F – 190°F (43°C – 87.8°C)|
|Operation Mode||Auto FanMode – 4 fanspeeds(Hi/Med/Lo/Off)
Manual Fan Mode – 3 fanspeeds (Hi/Med/Lo)
|Size (WxHxD)||28-3/8″ 15-1/4″ x 7-3/8″ (720 x 387 x 187 mm)|
|Weight||27.5 lbs. (12.5 kg)|
|Set Temperature Range||50°F – 90°F (12°C – 30°C)|
|Electrical Rating||120 Volts AC, Single phase 60 Hz
High- 37 (0.4A)
Med – 16W
Low – 9W
Med – 141 F3/min
Low- 64 F3/min
at 8.2ft.(2.5m) (dBA)
|High – 38,Med- 28, Low – 19|
|Wall Mount/Hanging Bracket||Included|
