Rehau Radiant Heating Panel Systems


Achieves the highest heat output among panel systems:

  • 50% higher heat output can satisfy demands of colder regions
  • 270° contact between pipe and highly conductive aluminum panel delivers quick response, making nighttime setback feasible
  • Built-in air pocket and wide contact surface efficiently directs heat upward
  • Lower fluid temperature requirements uniquely qualify RAUPANEL to work with low temperature radiant heating and geoexchange systems
  • Choice of 6 or 8 in. on-center spacing yields precise pipe layouts

Download Instructions


Competes head-to-head with traditional panel systems:

  • 5% higher heat output edges out competitive plywood panels
  • Choice of double groove or single groove panels simplify planning and installation
  • Plywood panels with aluminum heat transfer sheet install using typical construction jobsite tools
  • 1/2 in. low profile panels minimize adjustments in retrofit projects
  • Lower material costs make radiant affordable on a wider range of projects

Download Instructions

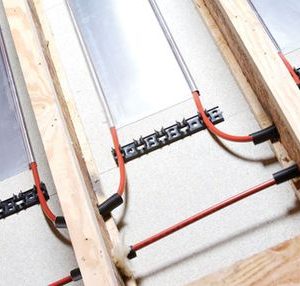

Double-channel heat transfer plates for joist space applications save time, reduce effort and improve heat transfer efficiency.

  • Double plate covers more area
  • Pipes snap easily and firmly into grooves without tools
  • Plates are easy to cut to length
  • Plates are more efficient at transferring heat to the floor above

Download Instructions
