Watts Tekmar Radiant Thermostat 519, One Stage Heat (Includes Slab Sensor 079)

Open an Account

Radiant Thermostat 519

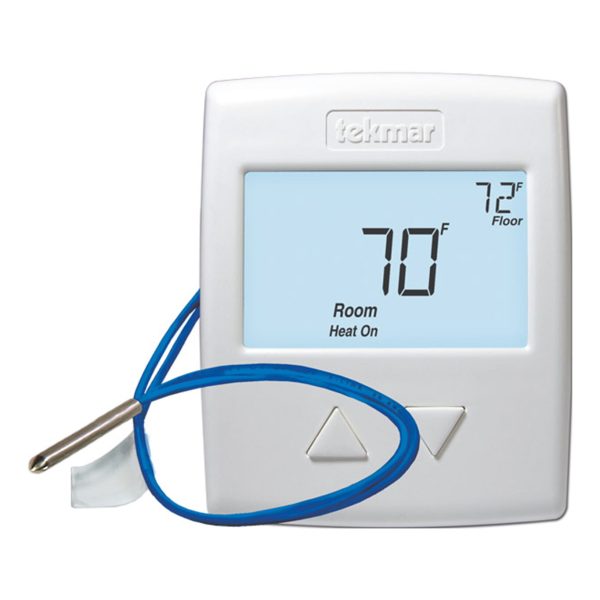

The Radiant Thermostat 519 by Watts is designed to precisely regulate room and/or floor temperatures within hydronic heating zones, employing cutting-edge Pulse Width Modulation (PWM) technology. Featuring straightforward up and down buttons and a display with prominently sized fonts, this thermostat ensures ease of readability and operation. To safeguard against overheating and enhance comfort, it comes equipped with a Slab Sensor 079 for accurate floor temperature measurement. Installation is hassle-free, as it serves as a direct replacement for the tekmar Thermostat 509. Additionally, an optional Adaptor Plate 012 is available for installation onto a single gang electrical box.

Key Features:

  • Automatic heating cycle
  • Radiant floor heating functionality
  • Utilizes pulse width modulation for precise control
  • Regulates both floor and air temperatures
  • Displays outdoor and floor temperatures
  • Includes a convenient backlight for enhanced visibility
  • Offers freeze protection for added safety
  • Comes complete with a slab sensor 079 for comprehensive functionality

Specifications

Agency Approvals Meets Class B: ICES & FCC Part 15
Ambient Conditions Indoor use only, 32 to 122 degrees F (0 to 50 degrees C), RH less than or equal to 90 percent non-condensing
Control Type Microprocessor control, this is not a safety (limit) control
Dimensions 3-11/16″ H x 3″ W x 15/16″ D (94 x 76 x 24 mm)
Enclosure Material White PVC plastic
Enclosure NEMA Rating NEMA 1
Power Supply 10 to 30 V (ac/dc), 50/60 Hz, 1.8 VA standby, 56 VA max fully loaded, Class 2
Relay 30 V (ac/dc) 2 A, Class 2 circuits
Sensor NTC thermistor, 10 k ohms at 77 degrees F (25 degrees C plus / minus 0.2 degrees C) Beta = 3892
